ENCLOSURE

GRP INSTRUMENT ENCLOSURE (MODEL CP)

Instrument enclosures are used to protect instrument from corrosion, chemical attack, mechanical abuse, freezing and weather.
They are made in GRP ( Glass Reinforced Polyester ) with stainless steel hardware and closed cell neoprene gasket.

ENCLOSURE SPECIFICATION

Made by two identical mouldings
Light grey colour
Waterproof construction
Antistatic
Fire retardant and self extinguishing
UV resistant
Non absorption of hydrocarbons

ACCESSORIES

Viewing window
Insulation for heat retention
Electrical heating
(for hazardous or non hazardous area)
Steam heating
Thermostat
Wall or pipe stand mounting bracket
Internal mounting bracket
Grommets, cable gland, bulkhead compression fittings
Identification label

Enclosures can be supplied fully assembled with instrument, manifold and accessories, ready to be installed on field.

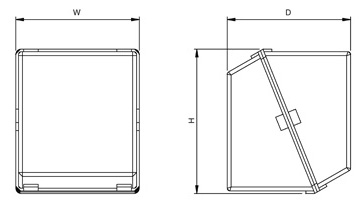

MODEL AND DIMENSION

Enclosure model CP1( suitable for one instrument )H:455 mm W: 350 mm D: 400 mm
Enclosure model CP2( suitable for one or two instruments )H:490 mm W:460 mm D:410 mm
Enclosure model CP3( suitable for two instruments )H: 455 mm W: 675 mm D: 400 mm
Enclosure model CP4( suitable for two or three instruments )H:495 mm W:710mm D:395mm

GRP PARTIAL INSTRUMENT ENCLOSURE (MODEL PCP)

Partial instrument enclosures are used to keep in temperature only the transmitter body, upper electronic case is located externally to avoid overheating.
They are made in GRP (Glass Reinforced Polyester) with stainless steel hardware and closed cell neoprene gasket.

ENCLOSURE SPECIFICATION

Made by two identical mouldings
Light grey colour
Waterproof construction
Antistatic
Fire retardant and self extinguishing
UV resistant
Non absorption of hydrocarbons

ACCESSORIES

Electrical heating
(for hazardous or non hazardous area)
Steam heating
Wall or pipe stand mounting bracket
Internal mounting bracket
Grommets, cable gland, bulkhead compression fittings
Identification label

Enclosures can be supplied fully assembled with instrument, manifold and accessories, ready to be installed on field

GRP INSTRUMENT SUNSHADE (MODEL SP)

Instrument sunshade are use to protect instrument from direct sun light.

ENCLOSURE SPECIFICATION

Light grey colour
Antistatic
Fire retardant and self extinguishing
UV resistant
Non absorption of hydrocarbons

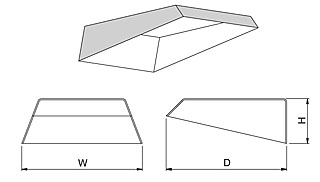

MODEL AND DIMENSION

Enclosure model SP1 ( suitable for one instrument )     H: 90 mm W: 190 mm D: 355 mm
Enclosure model SP2 ( suitable for one instrument )     H: 130 mm W: 350 mm D: 350 mm
Enclosure model SP3 ( suitable for two instruments )   H: 90 mm W: 390 mm D: 355 mm

ACCESSORIES

Wall or pipe stand mounting bracket
Instrument mounting bracket
Identification label
